TUV Round Recessed LED Down Light Replaces Traditional Halogen

TUV Round Recessed LED Down Light Replaces Traditional Halogen

• Philips Certa driver• SMD2835 as light source• Easy Recessed installation• Die-case housing as heatsink• High transmission PC cover• Various of installation clip

Send Inquiry

Product Details


TUV Round Recessed LED Down Light Replaces traditional halogen


TUV Round Recessed LED Down Light Replaces traditional halogen
TUV Round Recessed LED Down Light Replaces traditional halogen
            Key Features

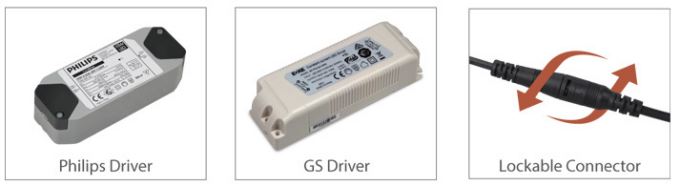

                • Philips Certa driver
                • SMD2835 as light source
                • Easy Recessed installation

            Construction Features
             • Die-case housing as heatsink
              • High transmission PC cover
              • Various of installation clip

            Application

              • Replaces traditional halogen
              • office, meeting room, hall, hotel, super-market, shop etc.

          Technical Features
     • Input Voltage:

                Philips Driver: AC200-240V 50/60Hz
                GS Driver: AC200-2240V 50/60Hz
             • Operation Voltage: DC36-42V
             • Power Factor:

                Philips Driver: PF/0.7-0.9
                GS driver: PF>0.95

             • Lumen maintenance @6000h :>80%
             • Switching cycle before failure: 50,000
             • IP Rating: IP20
             • Life Span: 30,000 hours
             • Warranty: 3 years
             • Operation Temperature: -15°C~+50°C
             • Storage Temperature: -25°C~+55°C

TUV Round Recessed LED Down Light Replaces traditional halogen


TUV Round Recessed LED Down Light Replaces traditional halogen


TUV Round Recessed LED Down Light Replaces traditional halogen

TUV Round Recessed LED Down Light Replaces traditional halogen


TUV Round Recessed LED Down Light Replaces traditional halogen
            Why choose us?

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement‎ manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement‎ at competitive price with us. We can also offer you customized service.

FAQ:


1.what’s the meaning of “Beam Angle “?

  The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.



2.How do we explain “CRI” ?

  A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.



3.What’s colour temperature ?

  The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.



4.Do you know “dali “?

  Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.



5.What’s the fire rating categories ?

  VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.

  HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

  TP(b)-Slow burning rate <50mm / min for thickness <3mm.

  TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.


Toppo Lighting is one of the leading tuv round recessed led down light replaces traditional halogen manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest tuv round recessed led down light replaces traditional halogen at competitive price with us. We can also offer you customized service.
