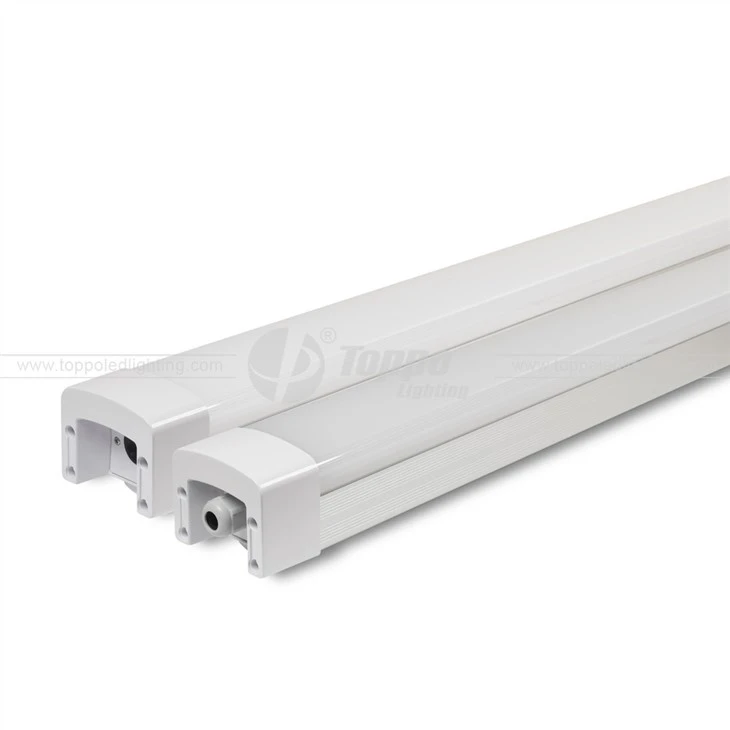

IP65 UL DLC LED Vapor Light

IP65 UL DLC LED Vapor Light

IK10 IP65 UL DLC TUV LED Vapor Light Key Features • IP65 water proof /dust proof /explosion proof /IK10 • Philips linear driver for 5 yesrs warranty • Special design for multiple link Construction Features • Aluminum shape as heatsink • Single or double wiring • Housing material: Aluminum + PC •...

Send Inquiry

Product Details

IK10 IP65 UL DLC TUV LED Vapor Light


Key Features

• IP65 water proof /dust proof /explosion proof /IK10
• Philips linear driver for 5 yesrs warranty
• Special design for multiple link



Construction Features

• Aluminum shape as heatsink
• Single or double wiring
• Housing material: Aluminum + PC
• Easy replacement and installation



Application

• Replaces fluorescent NCF fittings
• Warehouses & factories
• Car parks & sports facilities
• Kitchens & food storage


Technical Features

• Input Voltage:
GS driver: AC90-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<15%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP65
• Life Span: 50,000 hours
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C


Deluxe Version

Product Name

Product Code

Rated Power

Input Voltage

LED Type

LED Qty

Power Factor

Luminous Flux(LM)

Lumen Efficacy

CRI

60cm/22W

TRB2D1-22

22W

AC90-277V

SMD2835

132

PF>0.95

2500-2700

110-120

Ra>80

120cm/40W

TRB4D1-40

40W

AC90-277V

SMD2835

216

PF>0.95

4400-4800

110-120

Ra>80

120cm/60W

TRB4D1-60

60W

AC90-277V

SMD2835

324

PF>0.95

6500-7200

110-120

Ra>80

150cm/40W

TRB5D1-40

40W

AC90-277V

SMD2835

240

PF>0.95

4400-4800

110-120

Ra>80

150cm/60W

TRB5D1-60

60W

AC90-277V

SMD2835

324

PF>0.95

6500-7200

110-120

Ra>80



Toppo Lighting is one of the leading ip65 ul dlc led vapor light manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest ip65 ul dlc led vapor light at competitive price with us. We can also offer you customized service.
