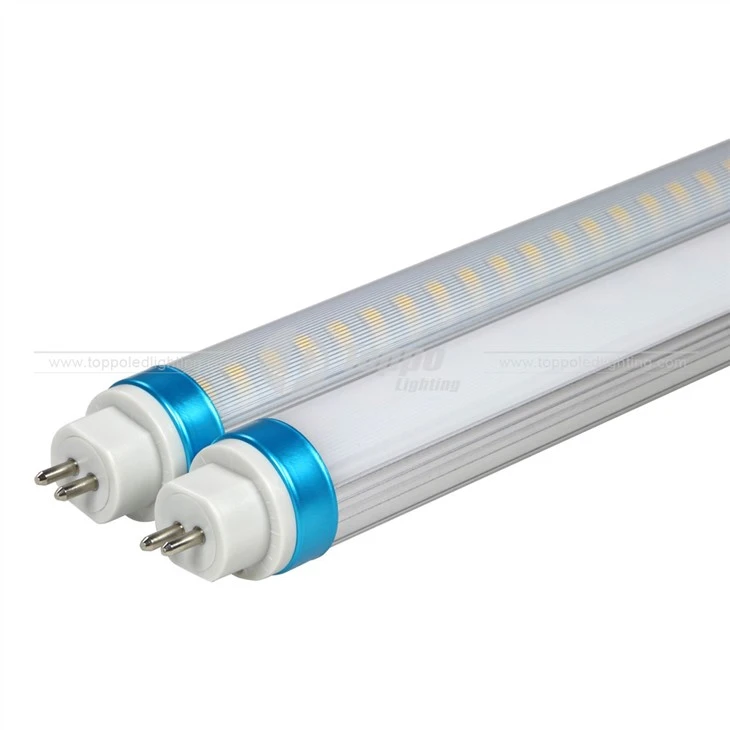

High Lumen SMD2835 As Light Source LED Tube 150-160LM/W

High Lumen SMD2835 As Light Source LED Tube 150-160LM/W

• Patent designed heatsink system • Various kind colorful cap ring • 180 degree rotatable end cap with scale • Socket / Diameter: Rotatable G13 / D26mm • Housing Material: D aluminum shape + PC cover

Send InquiryChat Now

Product Details

High lumen SMD2835 as light source LED Tube 150-160LM/W

Key Features
• 150-160 LM/W by latest LED technology
• High lumen SMD2835 as light source
• Up to 60% energu savings


Construction Features
• Patent designed heatsink system
• Various kind colorful cap ring
• 180 degree rotatable end cap with scale
• Socket / Diameter: Rotatable G13 / D26mm
• Housing Material: D aluminum shape + PC cover

Application
• Industrial Lighting: Factory, Warehouse, etc
• Commercial Lighting: Office, Supermarket,Hotel, Exhibition hall,etc.
• Public Lighting: Residence, Library, Hospitals,
School, MTR station, Train station, Bus station,
Airport, etc.



Technical Features
• Input Voltage: AC90-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD: <10%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C


Product Name

Product Code

Rated Power

Input Voltage

LED Type

LED Qty

Power Factor

Luminous Flux(LM)

Lumen Efficacy

CRI

Energy
 Efficiency
Class

60cm/10W

T802D21-10

10W

AC90-277V

SMD2835

104pcs

PF>0.90

1400-1500

typ.140-150

Ra>80

A++

120cm/18W

T802D41-18

18W

AC90-277V

SMD2835

208pcs

PF>0.95

2500-2700

typ.140-150

Ra>80

A++

120cm/20W

T802D41-20

20W

AC90-277V

SMD2835

221pcs

PF>0.95

2800-3000

typ.140-150

Ra>80

A++

150cm/22W

T802D51-22

22W

AC90-277V

SMD2835

286pcs

PF>0.95

3000-3300

typ.140-150

Ra>80

A++

150cm/25W

T802D51-25

25W

AC90-277V

SMD2835

312pcs

PF>0.95

3500-3750

typ.140-150

Ra>80

A++

150cm/30W

T802D51-30

30W

AC90-277V

SMD2835

364pcs

PF>0.95

4200-4500

typ.140-150

Ra>80

A++

High lumen SMD2835 as light source LED Tube 150-160LM/W

Toppo Lighting is one of the leading high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube at competitive price with us. We can also offer you customized service.


FAQ

1.Could we can do OEM ?

We offer OEM services. We can print your own logo on product and packaging and customize packaging box.


2.How do we explain “CRI” ?

  A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.


3.Where’s our company ?

TOPPO Lighting Company

The address is :D building of 6th Huanping Road,GaoQiao Zone of PingDi Town,LongGang district,Shenzhen 518116,P.R.C

Welcome to visit our company.


4.Do you know “dali “?

  Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.


5.MOQ ?

We don’t have MOQ. Welcome to try some samples from our company.


Toppo Lighting is one of the leading high lumen smd2835 as light source led tube 150-160lm/w manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest high lumen smd2835 as light source led tube 150-160lm/w at competitive price with us. We can also offer you customized service.
