Cheap Batten Light Fittings LED Slim Batten

Cheap Batten Light Fittings LED Slim Batten

LED batten lights are complete LED solutions designed to replace 2ft to 6ft T6 and T8 batten fittings in a broad variety of applications.

Send InquiryChat Now

Product Details

Cheap batten light fittings LED slim batten
            Key Features
             Slim aluminum case thinner than normal batten
             The popping clip make the top head out for installation
             Higher Lumen output than the fluorescent batten
             Infinite connection
            Construction Features
             Smart popping clip for installation
             Similar normal fluorescent batten with higher Lumen
             Easy installation on top head cover
            Application
             Replace fluorescent batten
             Industrial Lighting: Factory, Warehouse, etc
             Commercial Lighting: Office, Supermarket, etc.
             Public Lighting: Residence, Hospitals, School, MTR station, Train station, Airport, etc


Cheap batten light fittings LED slim batten

Cheap batten light fittings LED slim batten



Cheap batten light fittings LED slim batten

Cheap batten light fittings LED slim batten

            Options

             Case finish: White or silver

             Lighting Cover: Clear or Frosted

             Warm white: WW/3000K

             Neutral white: NW/4000K

             Pure white: PW/5000K

             Cool white: CW/6000K

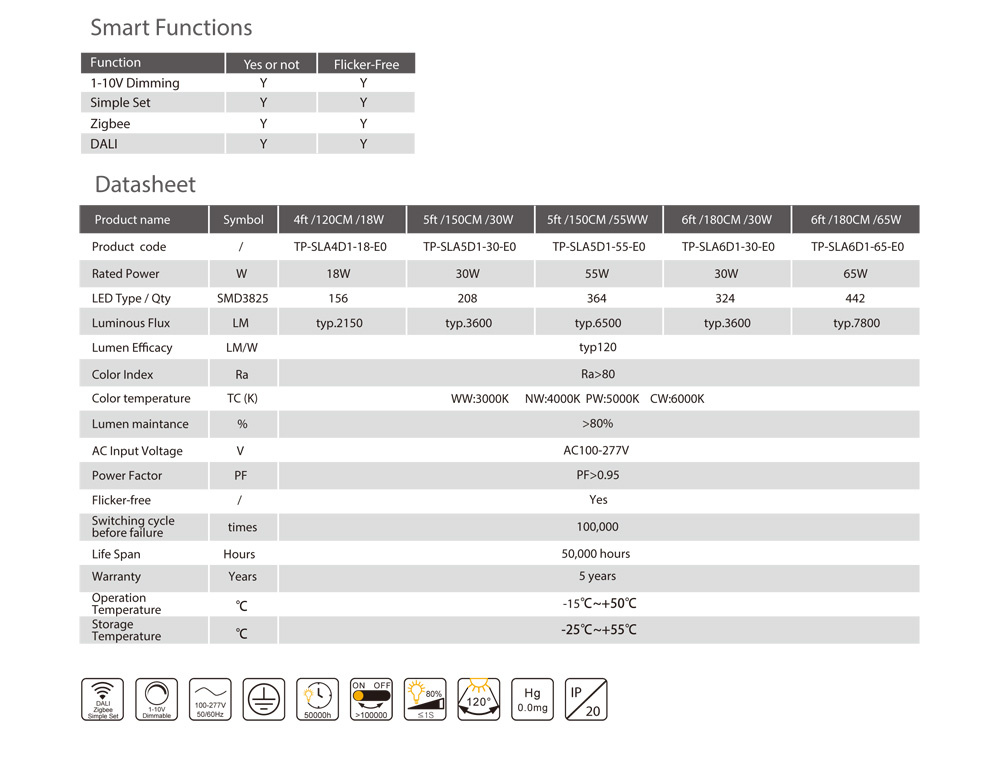

            Technical Features

             Input Voltage: AC90-277V 50/60Hz

             Operation Voltage: DC36-42V

             Total harmonic distortion: THD<10%

             Power Factor: PF>0.95

             Color Index: Ra>80

             Lumen maintenance @6000h: >80%

             Switching cycle before failure: 100,000

             IP Rating: IP20

             Life Span: 50,000 hours

             Warranty: 5 years

             Operation Temperature: -15°C~+50°C

             Storage Temperature: -25°C~+55°C

T3.jpg            Whwhy choose us?

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement‎ manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement‎ at competitive price with us. We can also offer you customized service.



1.How to explain “Flux/luminous Flux “?

  Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.



2.Why we use the high power LED ?

  A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.



3.How to explain “illuminance“?

  The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.



4.What’s efficacy about the light ?

  The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).



5.How important is IP ?

   Classifies and rates the degree of protection provided against intrusion (body parts such as hands and fingers), dust, accident contact, and water by mechanical casing and electrical enclosures.
