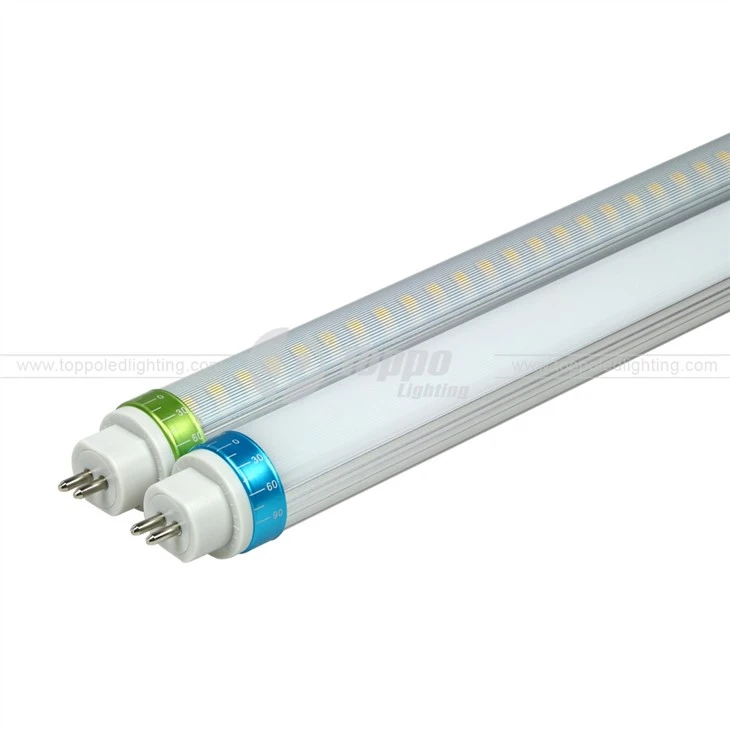

60cm/120cm/150cm Led Retrofit T8 Lamps 5 Years Warranty

60cm/120cm/150cm Led Retrofit T8 Lamps 5 Years Warranty

The T8 LED tubes are the best refrofit units to replace the flourescent. High Lumen Efficacy VDE/UL/DLC certificate 5 years Warranty Top Quality LED Tube Key Features • 140-150 LM/W by latest LED technology .

Send Inquiry

Product Details

60cm/120cm/150cm led retrofit t8 lamps 5 years warranty

Key Features
• 140-150 LM/W by latest LED technology
• High lumen SMD2835 as light source
• Up to 60% energu savings


Construction Features
• Patent designed heatsink system
• Various kind colorful cap ring
• 180 degree rotatable end cap with scale
• Socket / Diameter: Rotatable G13 / D26mm
• Housing Material: D aluminum shape + PC cover

Application
• Industrial Lighting: Factory, Warehouse, etc
• Commercial Lighting: Office, Supermarket,Hotel, Exhibition hall,etc.
• Public Lighting: Residence, Library, Hospitals,
School, MTR station, Train station, Bus station,
Airport, etc.



Technical Features
• Input Voltage: AC90-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD: <10%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C


Product Name

Product Code

Rated Power

Input Voltage

LED Type

LED Qty

Power Factor

Luminous Flux(LM)

Lumen Efficacy

CRI

Energy
 Efficiency
Class

60cm/10W

T802D21-10

10W

AC90-277V

SMD2835

104pcs

PF>0.90

1400-1500

typ.140-150

Ra>80

A++

120cm/18W

T802D41-18

18W

AC90-277V

SMD2835

208pcs

PF>0.95

2500-2700

typ.140-150

Ra>80

A++

120cm/20W

T802D41-20

20W

AC90-277V

SMD2835

221pcs

PF>0.95

2800-3000

typ.140-150

Ra>80

A++

150cm/22W

T802D51-22

22W

AC90-277V

SMD2835

286pcs

PF>0.95

3000-3300

typ.140-150

Ra>80

A++

150cm/25W

T802D51-25

25W

AC90-277V

SMD2835

312pcs

PF>0.95

3500-3750

typ.140-150

Ra>80

A++

150cm/30W

T802D51-30

30W

AC90-277V

SMD2835

364pcs

PF>0.95

4200-4500

typ.140-150

Ra>80

A++

60cm/120cm/150cm led retrofit t8 lamps 5 years warranty

Toppo Lighting is one of the leading high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube at competitive price with us. We can also offer you customized service.


FAQ

1.What’s the fire rating categories ?

  VO-Burning stops within 10 seconds on vertical specimen; drips of particles allowed as long as they are not inflamed.

  HB-Slow burning on a horizonal specimen’s burning rate <76mm /min thickness <3mm or burning stops before 100mm.

  TP(b)-Slow burning rate <50mm / min for thickness <3mm.

  TP(a)-Self extinguishes and flaming and afterglow should not exceed 5 seconds once source the source of flame is removed.


2.How about your packaging ?

Neutral box, customized box is welcomed.


3.Why we use the high power LED ?

  A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.


4.Can i have samples to test ?

Yes,sure. Welcome to order samples for evaluation before the bulk order.


5.What’s efficacy about the light ?

  The light output of a light source divided by the total electrical power input to that source, expressed in lumens per watt(lm/w).


Toppo Lighting is one of the leading 60cm/120cm/150cm led retrofit t8 lamps 5 years warranty manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest 60cm/120cm/150cm led retrofit t8 lamps 5 years warranty at competitive price with us. We can also offer you customized service.
