4ft/5ft/6ft High Color Index LED Slim Batten

4ft/5ft/6ft High Color Index LED Slim Batten

LED batten lights are complete LED solutions designed to replace 2ft to 6ft T6 and T8 batten fittings in a broad variety of applications.Th slim batten have got SAA/CE/ROHS approved. The LED battens are held by a simple clip design ensuring a simple installation procedure.

Send Inquiry

Product Details

4ft/5ft/6ft high color index LED slim batten
            Key Features
             Slim aluminum case thinner than normal batten
             The popping clip make the top head out for installation
             Higher Lumen output than the fluorescent batten
             Multiple functions as below
            Construction Features
             Smart popping clip for installation
             Similar normal fluorescent batten with higher Lumen
             Easy installation on top head cover
            Application
             Replace fluorescent batten
             Industrial Lighting: Factory, Warehouse, etc
             Commercial Lighting: Office, Supermarket, etc.
             Public Lighting: Residence, Hospitals, School, MTR station, Train station, Airport, etc


4ft/5ft/6ft high color index LED slim batten

4ft/5ft/6ft high color index LED slim batten



4ft/5ft/6ft high color index LED slim batten

4ft/5ft/6ft high color index LED slim batten

            Options

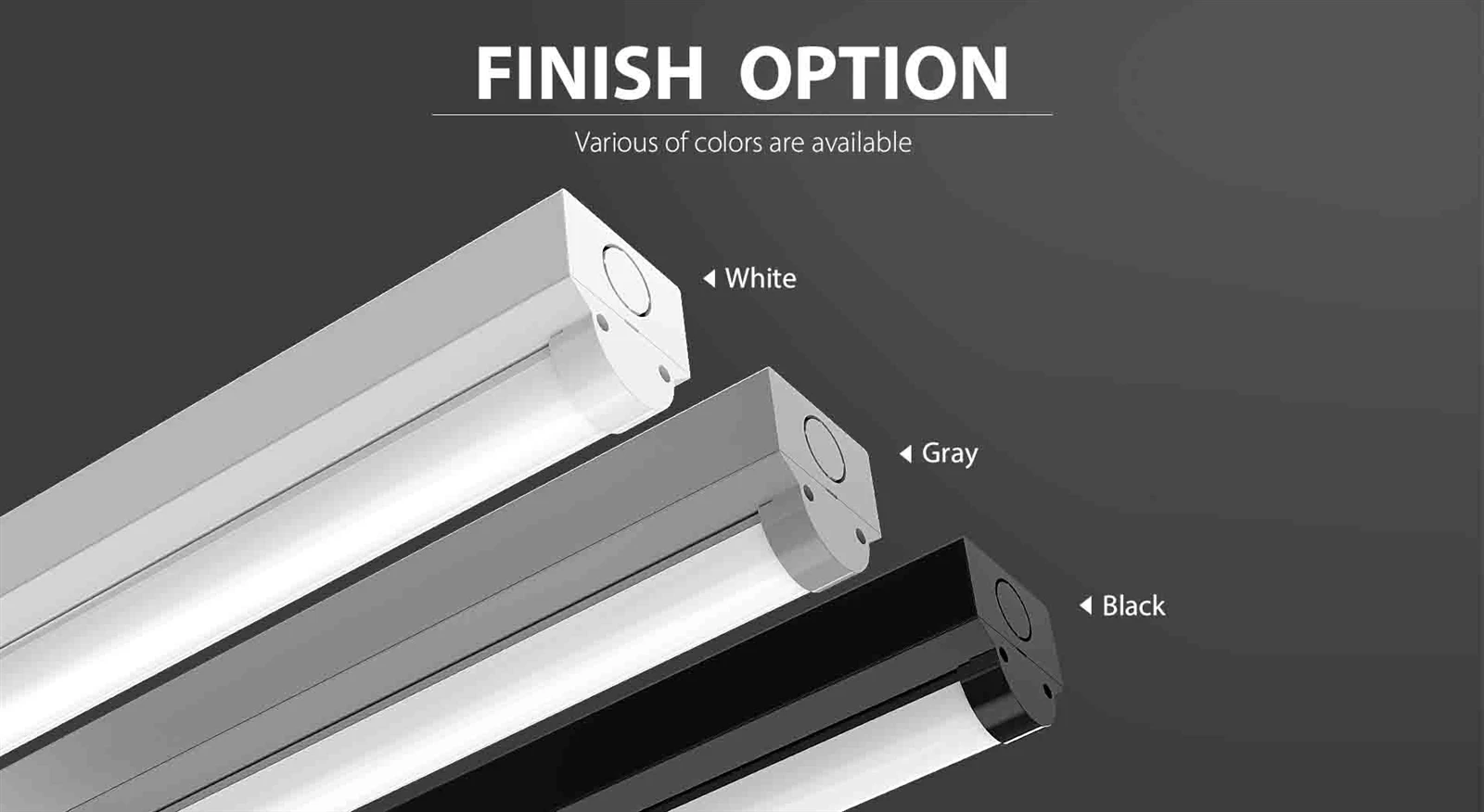

             Case finish: White or silver

             Lighting Cover: Clear or Frosted

             Warm white: WW/3000K

             Neutral white: NW/4000K

             Pure white: PW/5000K

             Cool white: CW/6000K

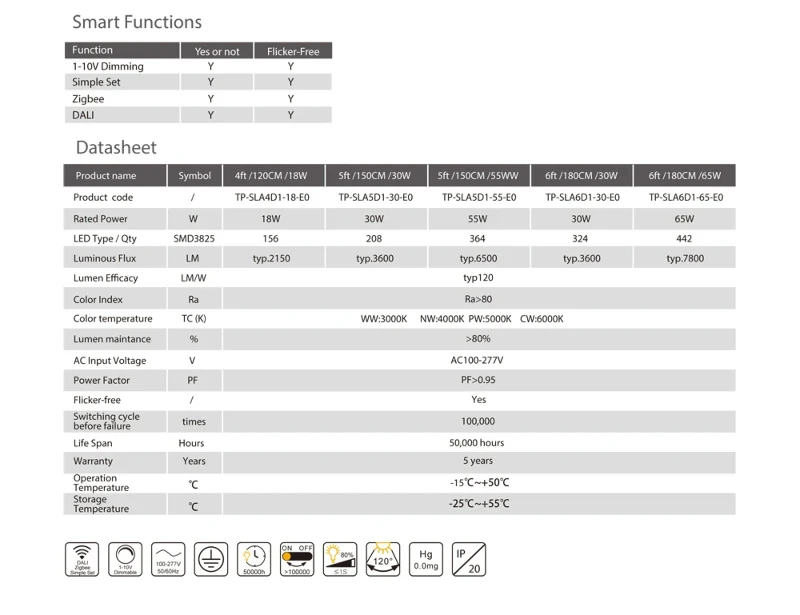

            Technical Features

             Input Voltage: AC90-277V 50/60Hz

             Operation Voltage: DC36-42V

             Total harmonic distortion: THD<10%

             Power Factor: PF>0.95

             Color Index: Ra>80

             Lumen maintenance @6000h: >80%

             Switching cycle before failure: 100,000

             IP Rating: IP20

             Life Span: 50,000 hours

             Warranty: 5 years

             Operation Temperature: -15°C~+50°C

             Storage Temperature: -25°C~+55°C

T3.jpg            Whwhy choose us?

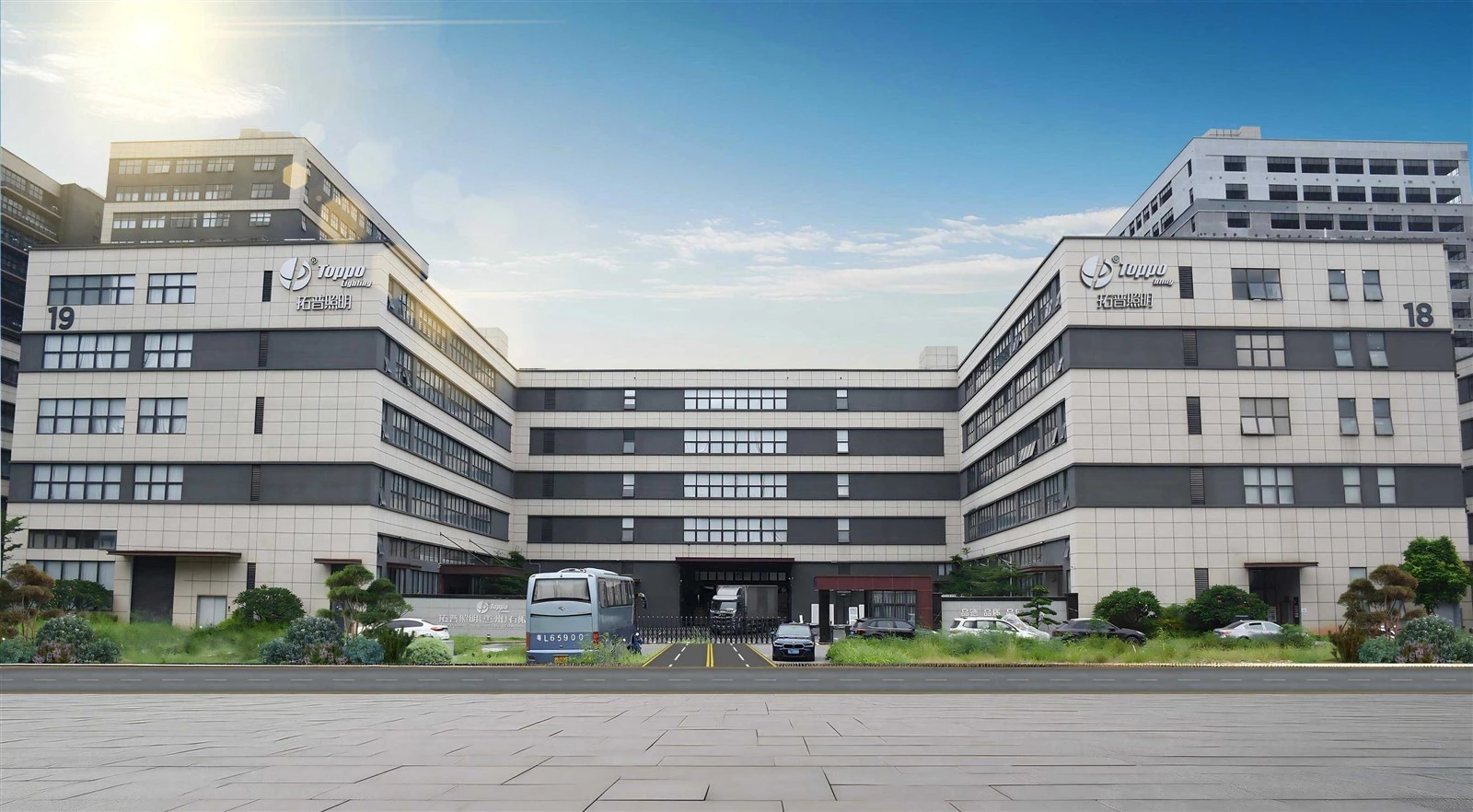

           Toppo Lighting is one of the leading traditional tube fixture led fluorescent replacement‎ manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest traditional tube fixture led fluorescent replacement‎ at competitive price with us. We can also offer you customized service.



1.What’s Smart Lighting ?

   Automated lighting control using sensors and /or scheduling switches.



2.What’s Watt ?

   The unit of electrical power as used by an electrical device during its operation. Many lamps come with rating in watts to indicate their power consumption.



3.How to explain “ZigBee“ ?

   A low -power ,low date rate, local area wireless network; ideal for lighting control.



4.How to explain “lumen output “ ?

   The total lumens emitted of a light source, system, or solution.



5.What’s LED Chips ?

   The light producing semiconductor device that may or may not be incorporated into an LED.
