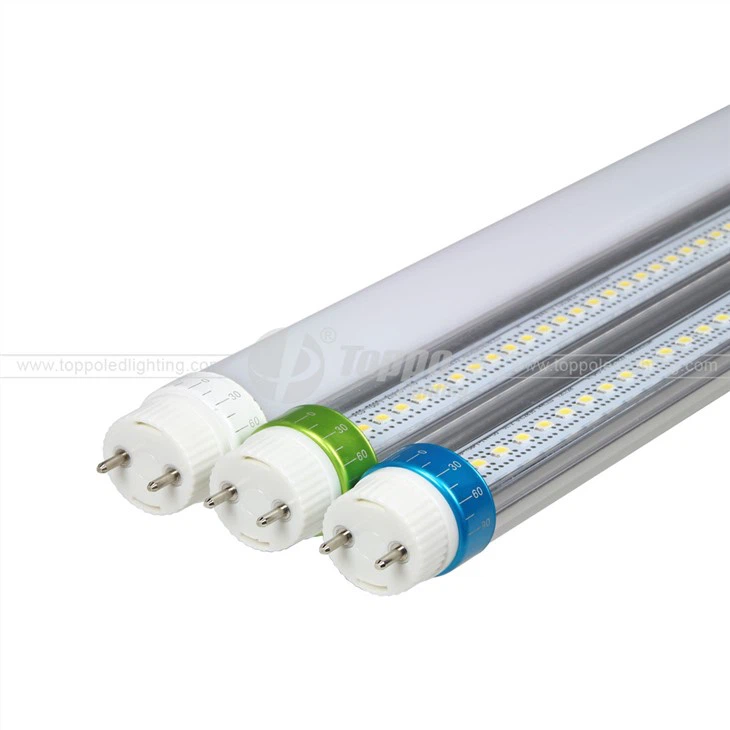

10W,20W,22W,258W,30W LED Tube 150-160LM/W

10W,20W,22W,258W,30W LED Tube 150-160LM/W

• Patent designed heatsink system• Various kind colorful cap ring• 180 degree rotatable end cap with scale • Socket / Diameter: Rotatable G13 / D26mm• Housing Material: D aluminum shape + PC cover

Send Inquiry

Product Details

T10W,20W,22W,258W,30W LED Tube 150-160LM/W

Key Features
• 150-160 LM/W by latest LED technology
• High lumen SMD2835 as light source
• Up to 60% energu savings


Construction Features
• Patent designed heatsink system
• Various kind colorful cap ring
• 180 degree rotatable end cap with scale
• Socket / Diameter: Rotatable G13 / D26mm
• Housing Material: D aluminum shape + PC cover

Application
• Industrial Lighting: Factory, Warehouse, etc
• Commercial Lighting: Office, Supermarket,Hotel, Exhibition hall,etc.
• Public Lighting: Residence, Library, Hospitals,
School, MTR station, Train station, Bus station,
Airport, etc.



Technical Features
• Input Voltage: AC90-277V 50/60Hz
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD: <10%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Warranty: 5 years
• Operation Temperature: -15°C~+50°C
• Storage Temperature: -25°C~+55°C


Product Name

Product Code

Rated Power

Input Voltage

LED Type

LED Qty

Power Factor

Luminous Flux(LM)

Lumen Efficacy

CRI

Energy
 Efficiency
Class

60cm/10W

T802D21-10

10W

AC90-277V

SMD2835

104pcs

PF>0.90

1400-1500

typ.140-150

Ra>80

A++

120cm/18W

T802D41-18

18W

AC90-277V

SMD2835

208pcs

PF>0.95

2500-2700

typ.140-150

Ra>80

A++

120cm/20W

T802D41-20

20W

AC90-277V

SMD2835

221pcs

PF>0.95

2800-3000

typ.140-150

Ra>80

A++

150cm/22W

T802D51-22

22W

AC90-277V

SMD2835

286pcs

PF>0.95

3000-3300

typ.140-150

Ra>80

A++

150cm/25W

T802D51-25

25W

AC90-277V

SMD2835

312pcs

PF>0.95

3500-3750

typ.140-150

Ra>80

A++

150cm/30W

T802D51-30

30W

AC90-277V

SMD2835

364pcs

PF>0.95

4200-4500

typ.140-150

Ra>80

A++

10W,20W,22W,258W,30W LED Tube 150-160LM/W

Toppo Lighting is one of the leading high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest high lumen efficacy vde/ul/dlc certificate 5 years warranty top quality t8 led tube at competitive price with us. We can also offer you customized service.


FAQ

1.what’s the payment methods you can accept ?

We can only use T/T. The bank information will be written in the PI. We can’t use Western Union and Paypal.


2.What’s your shipping method ?

UPS, DHL, Fedex, TNT or Shipping by Air or by sea


3.What’s your main product line is made ?

We mainly produce LED indoor lights (LED Panel light, led Tri-proof light, LED Batten light, LED tube,LED Ceiling light, LED Down light, LED Round Panel Light, LED 2D ceiling Light,LED Wall Pack )


4.How to explain “Flux/luminous Flux “?

  Luminous flux is the measure of the perceived power of light produced by the LED, adjusting to reflect the varying sensitivity of the human eye to different wavelengths of light.



5.Why we use the high power LED ?

  A high power LED, sometimes referred to as a power LED, is one that is driven at current of 350mA or higher.



8.How to explain “illuminance“?

  The intensity of light falling on a surface area. If the area is measured in square feet, the unit of illuminance is footcandles(fc). If measured in square metres, the unit of illuminance is Lux.


Toppo Lighting is one of the leading 10w,20w,22w,258w,30w led tube 150-160lm/w manufacturers and suppliers in China, which is equipped with a productive factory. Welcome to import the newest 10w,20w,22w,258w,30w led tube 150-160lm/w at competitive price with us. We can also offer you customized service.
